Data Masking in TiDB

TiDB’s distributed SQL architecture and MySQL compatibility make it a natural choice for customer and transactional workloads—but that also means sensitive fields often end up in the same cluster used by analysts, support teams, and automation. Without consistent controls, one ad-hoc query or exported CSV can expose personal or regulated data.

Data masking reduces that risk by transforming sensitive values into safe representations while preserving usability (joins, formats, and analytics). In TiDB deployments, masking is usually done either at query time (dynamic) or during dataset creation (static). TiDB provides strong SQL and privilege controls (see TiDB documentation), while DataSunrise adds a centralized policy layer for discovery, masking enforcement, and audit evidence.

Where TiDB teams typically need masking

Masking is most valuable where real data must be accessed by more people and tools than the original application boundary intended. Common examples include:

• BI and ad-hoc analytics where users should see trends, not raw identifiers.
• Non-production copies for QA, data science, and vendor testing.
• Operational access during troubleshooting when “temporary” permissions become sticky.

Start by identifying high-risk columns such as emails, phone numbers, national IDs, and card data—especially data that qualifies as PII.

The core masking challenges with distributed SQL

1. Many access paths
   TiDB data is queried through apps, SQL clients, ETL, and BI tools. If masking is applied only in one place, another path will leak raw values.

2. Role drift
   Without a clear RBAC model, permissions expand over time and become hard to audit.

3. Copy proliferation
   New “temporary” clones appear for every sprint. Static masking must be repeatable so copies don’t reintroduce sensitive fields.

4. Evidence gaps
   Security teams need proof that controls align with compliance regulations—not just “we think masking is enabled.”

Dynamic data masking for TiDB query results

Dynamic masking protects data in motion by modifying results at query time. It’s ideal for production, where you must keep the underlying values intact but restrict what certain users, roles, or networks can see.

Baseline approach: masked views

For a minimal implementation, you can publish masked views and grant access only to those views:

CREATE VIEW masked_customers AS
SELECT
  id,
  CONCAT(LEFT(email, 2), '***@***', RIGHT(email, 4)) AS email_masked,
  CONCAT('***-***-', RIGHT(phone, 4)) AS phone_masked
FROM customers;

GRANT SELECT ON masked_customers TO 'analyst_role';

Views can help, but they don’t automatically protect base tables, and they become difficult to maintain as schemas grow.

Policy-based approach: DataSunrise in the query path

To enforce masking consistently across tools, organizations deploy a policy layer in front of TiDB. DataSunrise can apply masking based on identity and context, and it can complement masking with a database firewall plus SQL injection security rules for additional protection.

The Dynamic Masking Rule workflow typically includes selecting the TiDB instance, choosing objects/columns, assigning masking methods, and setting rule conditions (user/role, application, IP range, or time window).

When defining dynamic rules, choose masking methods that match the workload. For example, support teams may need partial reveal (last 4 digits), while analysts need consistent pseudonyms for grouping. Keep conditions explicit (specific roles, schemas, and applications) to avoid over-masking critical operational queries, and validate performance with representative peak traffic.

Creating a Dynamic Masking Rule for TiDB in DataSunrise: choose database type, attach instances, and configure actions so masked access is visible to security teams.

Static masking for TiDB non-production clones

Static masking transforms data at rest to produce a sanitized dataset for QA, development, or analytics sandboxes. Many teams prefer “source → masked target” cloning, and reserve in-place masking for tightly controlled scenarios.

A practical static masking runbook is:

1. Inventory sensitive fields with data discovery.
2. Assign methods per column (redaction, substitution, partial reveal, hashing). For related tables, apply consistent transformations so joins and foreign keys remain usable.
3. Automate refresh so non-production environments stay current without copying raw production data.

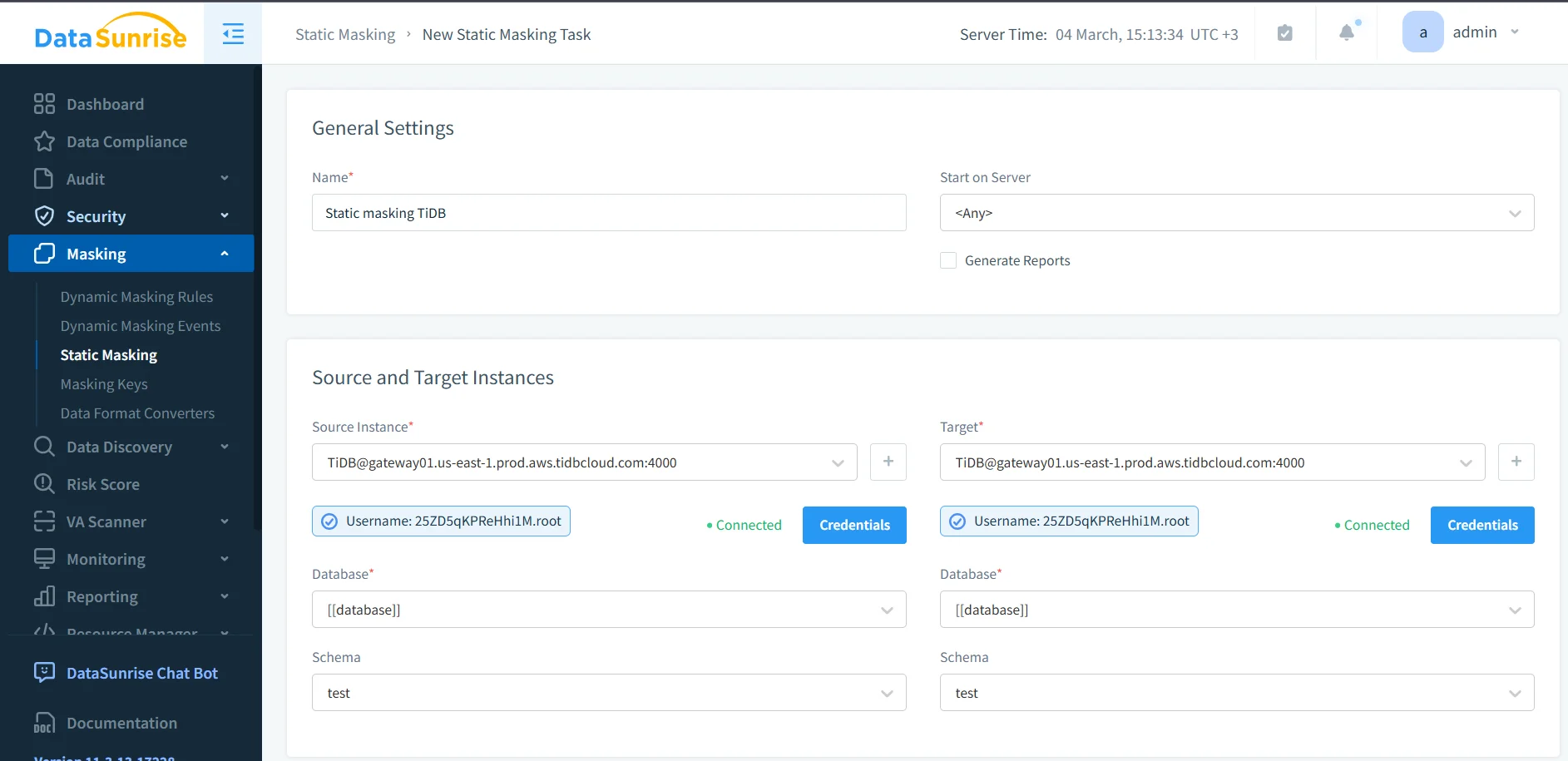

Static Masking task setup: select source and target TiDB instances, confirm credentials, and choose the database/schema to generate a sanitized copy.

Auditing and compliance: making masking measurable

Masking should be observable. DataSunrise pairs masking with database activity monitoring and centralized audit logs so you can prove what was accessed and how it was protected. If you’re formalizing a program, the audit guide and the concept of an audit trail help translate technical events into governance-ready evidence.

For regulated workloads, DataSunrise’s Compliance Manager can map controls to reporting needs and reduce manual audit preparation.

Best practices checklist

• Design from least privilege: apply the principle of least privilege to roles, networks, and environments.
• Standardize controls: align masking with broader controls from the DataSunrise Security Guide.
• Cover hybrid estates: if TiDB is part of a broader stack, DataSunrise support for 40+ data platforms helps keep policies consistent across systems.

Conclusion: implementing defense-in-depth for data masking in TiDB

Data masking in TiDB works best as a combined strategy: dynamic masking to control production visibility, static masking to distribute safe datasets, and auditing to prove that policies are enforced. If you’re evaluating TiDB and DataSunrise, TiDB is available at github.com. To see how end-to-end masking and policy-based auditing can work, request a DataSunrise demo below. .
